Descripción
RECIBE A FINALES DE MAYO

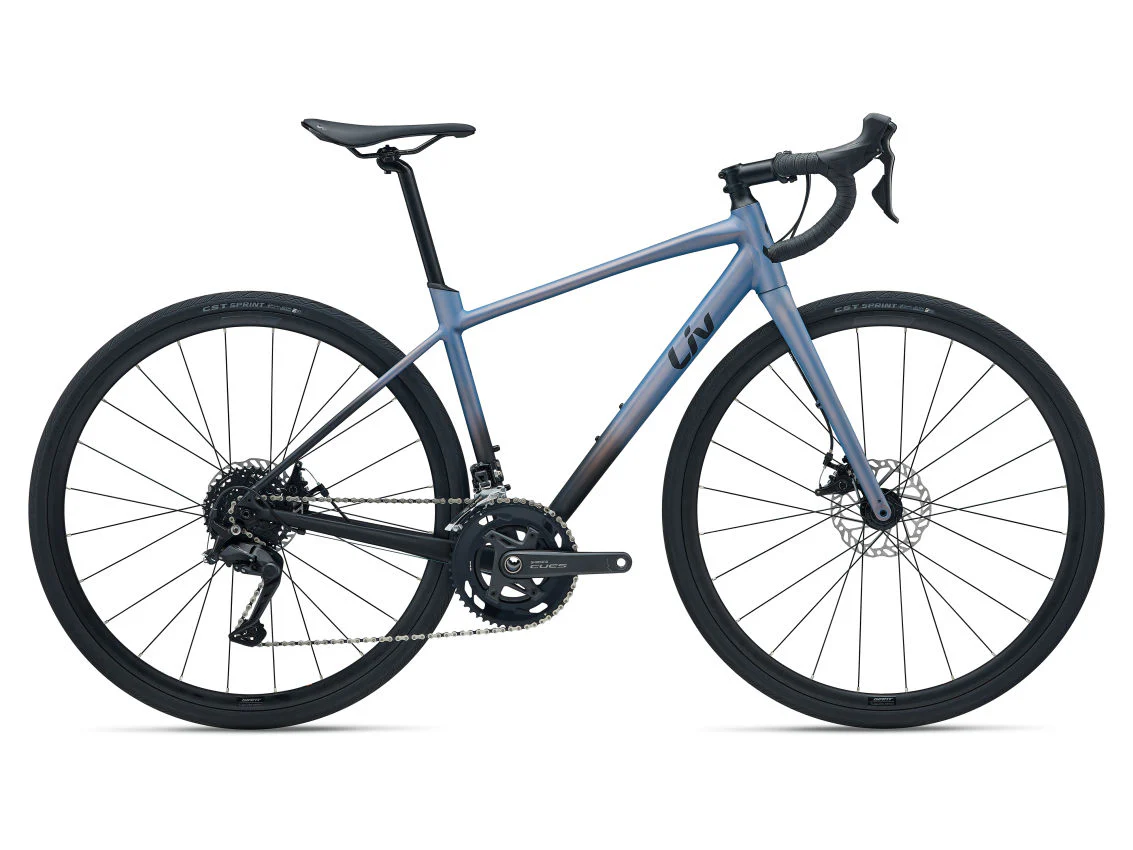

Whether it’s navigating asphalt or venturing through an unpaved short cut, the Avail AR is smooth on flats, spry on climbs and confident on descents.
Key Performance Factors
Comfort
The lightweight ALUXX aluminum frame features the latest endurance geometry with an Advanced-grade composite fork and D-Fuse seatpost to diminish vibrations.
Control
The 32c tires provide stability on both road and off-road surfaces, with compatibility for tubeless tires up to 38c. The OverDrive steerer and powerful disc brakes ensure precise handling and reliable stopping power, giving you confidence on any terrain.
Carrying Capacity
Equipped with frame mounts for racks and fenders, the Avail AR ensures you’re ready for longer journeys with all the necessary gear and protection.
Techs & Features
This Performance level frame material features 6061 alloy with single-butted tubes to produce strong, lightweight framesets for a variety of different bikes and riding styles.
When introduced by Giant in 1990s, Compact Road revolutionized the look and feel of high-performance road bikes forever. A downward sloping toptube (from the headtube to the seattube) creates smaller front and rear triangles for a lighter, stiffer bike. It also makes it easier for riders of all sizes to have a perfect fit.
The proprietary “D” shaped composite seatpost damps vibration, resulting in a smooth, compliant ride.
Designed to provide precise front-end steering performance, this fork steerer tube technology uses oversized headset bearings (1 1/4” lower and 1 1/8” upper for road, 1 1/2” lower and 1 1/8” upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.
Sizing Guide and Geometry
Sizing to be used as a reference only. Please check with a local authorized Liv or Giant dealer to determine the correct size.
Available sizes may vary from country to country.
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
-
- XS
-
153 cm5’0”
162 cm5’4”
-
- S
-
158 cm5’2” 169 cm5’7”
-
- M
-
165 cm5’5” 174 cm5’9”
-
- L
-
171 cm5’7” 182 cm6’0”
Selection of a button will change the units measurement displayed throughout the entire sizing guide section.
| XS | S | M | L | |
|---|---|---|---|---|
| A Seat Tube Length (mm) (inch) | 43016.9 | 46518.3 | 50019.7 | 53521.1 |
| B Seat Tube Angle (degrees) | 75.0° | 74.5° | 74.0° | 74.0° |
| C Top Tube Length (mm) (inch) | 51520.3 | 52520.7 | 54021.3 | 55521.9 |
| D Head Tube Length (mm) (inch) | 1355.3 | 1505.9 | 1706.7 | 1907.5 |
| E Head Tube Angle (degrees) | 70.5° | 72.0° | 72.0° | 72.0° |
| F Fork Rake (mm) (inch) | 451.8 | 451.8 | 451.8 | 451.8 |
| G Trail (mm) (inch) | 732.9 | 63.52.5 | 63.52.5 | 63.52.5 |
| H Wheelbase (mm) (inch) | 99839.3 | 99039 | 100039.4 | 101640 |
| I Chain Stay Length (mm) (inch) | 42016.5 | 42016.5 | 42016.5 | 42016.5 |
| J Bottom Bracket Drop (mm) (inch) | 702.8 | 702.8 | 702.8 | 702.8 |
| K Stack (mm) (inch) | 53020.9 | 55021.7 | 56922.4 | 58823.1 |
| L Reach (mm) (inch) | 37214.6 | 37214.6 | 37714.8 | 38615.2 |
| M Stand Over Height (mm) (inch) | 68727 | 71628.2 | 74429.3 | 77230.4 |
| N Handlebar Width (mm) (inch) | 38015 | 40015.7 | 40015.7 | 42016.5 |
| O Stem Length (mm) (inch) | 702.8 | 803.1 | 903.5 | 903.5 |
| P Crank Length (mm) (inch) | 1656.5 | 1656.5 | 1706.7 | 172.56.8 |
